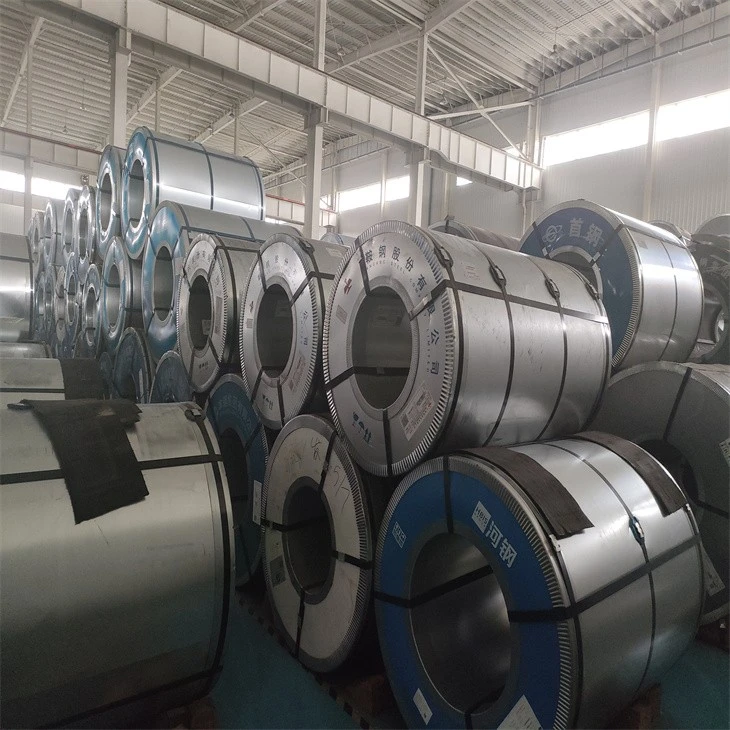

35H230 Non Grain Oriented Silicon Steel

35H230 Non Grain Oriented silicon steel

High-speed electric motors: 35H230 Non Grain Oriented Electrical Steel is also used in the construction of high-speed electric motors, where its high magnetic flux density and low iron loss help to improve the efficiency and performance of the motor.

35H230 steel Specifications

Thickness	Assumed Density	Core Loss(W/Kg)				Core Loss(W/Lb)				Induction (800A/m)	Lamination Factor (Minimum)	Remark
		50Hz		60Hz		50Hz		60Hz
mm	Kg/dm3	1.0T	1.5T	1.0T	1.5T	1.0T	1.5T	1.0T	1.5T
0.35	7.60	0.95	2.30	1.20	2.90	0.43	1.04	0.54	1.32	1.62	95.0	-

35H230 steel Typical Electrical and Magnetic Properties

Assumed Density	Resistivity	Core Loss								Induction T
		W／Kg				W／LB
Kg/dm3	Ohm*Meter (X10e-8)	50Hz		60Hz		50Hz		60Hz
		1.0T	1.5T	1.0T	1.5T	1.0T	1.5T	1.0T	1.5T	2,500A/m	5,000A/m
7.60	59	0.85	2.10	1.08	2.67	0.39	0.95	0.49	1.21	1.56	1.66

35H230 steel Typical Mechanical Properties and Lamination Factors

Tensiile Strength				Yield Point				Elongation %		Hardness Hv(1)	Bending Test Value		Lamination Factor %
N/mm2		lb/in2(X10e3)		N/mm2		lb/in2(X10e3)
L	C	L	C	L	C	L	C	L	C		L	C
539	559	78	81	441	461	64	67	14	16	213	9	8	98.0

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 20-30days.

Q: What is your terms of payment ?

A:TT or L/C at sight
